Power-Pole CHARGE Marine Power Manager Onboard Smart Battery Charger – New

The Power-Pole CHARGE Marine Power Manager Onboard Smart Battery Charger is an advanced 4-in-1 marine power-management system built to keep a boat’s cranking and trolling-motor batteries charged, balanced, and ready for long days on the water. Rather than functioning only as a conventional onboard charger, CHARGE combines shore-power charging, bi-directional power management, charge-on-the-run capability, and emergency starting power in one compact unit. (Power-Pole)

Designed for serious anglers and boat owners running demanding electronics, trolling motors, livewells, sonar, and other accessories, CHARGE intelligently directs available energy toward the batteries that need it most. It supports lithium, lead-acid, AGM, GEL, and TPPL battery chemistries and can be monitored and configured through the Power-Pole C-Monster ecosystem. (Power-Pole)

Official Power-Pole CHARGE Marine Power Manager

Power-Pole CHARGE Specifications

Power-Pole’s current listing identifies the unit as CH-500W and specifies up to 500 watts of power, 40 amps to the engine battery, and 25 amps to auxiliary batteries. (Power-Pole)

4-in-1 Marine Power Management

What separates the Power-Pole CHARGE from a basic marine battery charger is its ability to manage energy in multiple directions.

The system functions as a traditional onboard charger, bi-directional power manager, charge-on-the-run system, and emergency-start power system. Instead of simply charging batteries when connected to shore power, CHARGE can manage available energy while the boat is operating. (Power-Pole)

This makes it particularly useful for fishing boats equipped with high-draw trolling motors and multiple marine electronics.

Up to 500 Watts of Charging Power

The CHARGE provides up to 500 watts of power. Power-Pole specifies a maximum of 40 amps for charging the engine/cranking battery and up to 25 amps for auxiliary batteries. (Power-Pole)

Its output capabilities include:

12V Engine Battery Shore Charge: Up to 500W
24/36V Run Charge: Up to 500W from the 12V engine battery and/or shore power
12V Back Charge: Up to 500W transferred from the 24/36V auxiliary battery system to the engine battery. (Power-Pole)

This bi-directional design allows CHARGE to use available energy more effectively than a conventional one-direction charger.

Charge Your Trolling Batteries While Running

One of the strongest features of the Power-Pole CHARGE Marine Power Manager is charge-on-the-run capability.

While the engine is operating and its charging system has available capacity, CHARGE can direct energy toward the trolling-motor battery bank. It can also prioritize charging according to settings selected by the user. (Power-Pole)

For anglers who move frequently between fishing locations, this creates opportunities to replenish trolling-motor batteries throughout the day rather than relying entirely on overnight shore charging.

Emergency Power Transfer

A weak cranking battery can end a fishing trip quickly. CHARGE addresses this with its Emergency Power Transfer capability.

Power-Pole states that the system can move available energy from the auxiliary battery bank back to the engine battery when emergency starting power is needed. The transfer can be initiated through the control system. (Power-Pole)

This built-in capability can reduce dependence on carrying a separate jump-start system.

One important exception applies to some lithium configurations: Power-Pole notes that if a lithium cranking battery shuts down or enters sleep mode, the Emergency Power Transfer feature will not be available. (Power-Pole)

Compatible With Lithium, AGM and Other Marine Batteries

The Power-Pole CHARGE Marine Power Manager supports multiple battery chemistries, including high-performance lithium, lead-acid, AGM, GEL, and TPPL. (Power-Pole)

Power-Pole also confirms that the engine battery can use a different chemistry or amp-hour rating from the trolling-motor batteries. (Power-Pole)

For lithium installations, correct configuration in the Power-Pole app is important. Power-Pole specifically instructs users to enter battery chemistry, configuration, and amp-hour information so CHARGE can effectively manage the lithium battery system. (Power-Pole)

Power-Pole CHARGE Lithium Battery Setup Guide

24V and 36V Trolling-Motor Battery Support

CHARGE works with common trolling-motor battery-bank configurations, including single 24V or 36V lithium batteries and groups of 12V lithium batteries connected in series. (Power-Pole)

Power-Pole states that a single 24V or 36V lithium battery offers advantages such as faster charging, reduced wiring, lower weight, and no requirement to individually balance several separate 12V batteries. Series-connected 12V batteries are also supported but can require longer charging and balancing times. (Power-Pole)

C-Monster App Monitoring

The CHARGE integrates with the Power-Pole C-Monster control platform. Users can monitor battery voltage and status and adjust charging priorities through the compatible Power-Pole app. (Power-Pole)

This gives anglers much greater visibility into their boat’s electrical system than a conventional onboard charger with only basic indicator lights.

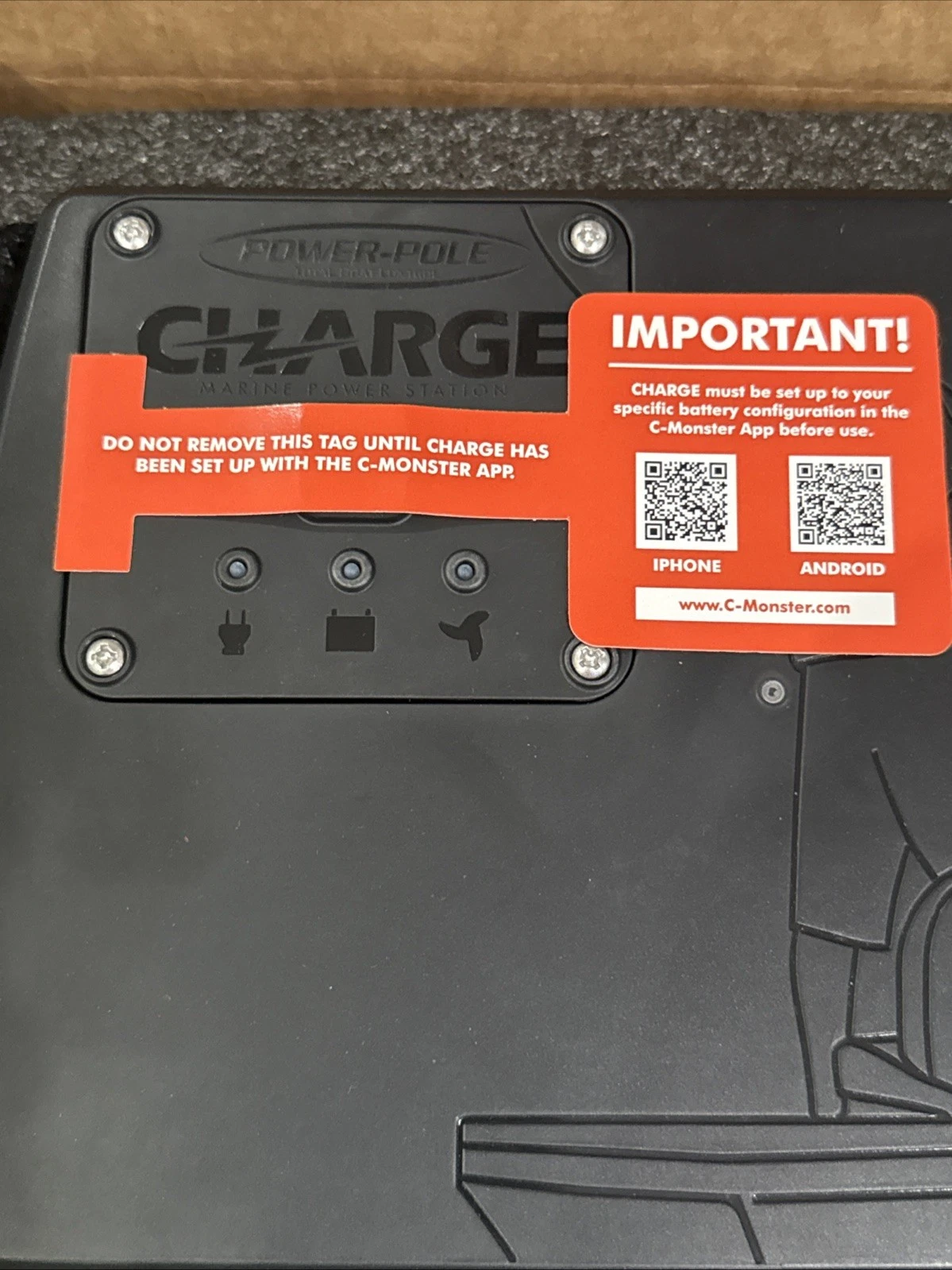

The CHARGE itself also provides an LED status system for quick battery information without opening the app. (Power-Pole)

Compatible Marine Displays

With the appropriate Power-Pole Gateway, CHARGE can integrate with select multifunction displays from major marine-electronics manufacturers.

Power-Pole currently lists compatible families including certain Lowrance HDS Live, HDS Carbon and Elite Ti2; Simrad NSS, NSO and GO models; and Garmin ECHOMAP and GPSMAP displays. Compatibility depends on the specific display and installation, so customers should verify their exact MFD before ordering the Gateway. (Power-Pole)

Compact 8.75 lb Design

Despite replacing the functions of several individual devices, CHARGE measures only approximately 10.62 inches high × 8 inches wide × 3.03 inches deep and weighs 8.75 lb. (Power-Pole)

The compact form factor can help free valuable storage space in bass boats and other fishing vessels where multiple chargers, electrical components, batteries, and fishing equipment compete for limited space.

IP65 Protection

The CHARGE enclosure carries an IP65 rating. Power-Pole also incorporates an integrated heatsink cooling system and temperature sensors into the system for protection during operation. (Power-Pole)

The unit should still be mounted and wired according to the manufacturer’s installation requirements rather than treating the IP rating as permission for unrestricted immersion.

Ideal for Modern Fishing Boats

Today’s fishing boats can place significant demand on their electrical systems. Multiple sonar displays, live sonar, transducers, pumps, lighting, accessories, and high-powered trolling motors can consume substantial battery capacity.

The Power-Pole CHARGE Marine Power Manager Onboard Smart Battery Charger is particularly attractive for anglers who want one integrated system to manage their cranking battery and 24V/36V trolling-motor battery bank while making better use of shore power and available engine-generated power.

It pairs especially well with boats equipped with high-power trolling motors and extensive marine-electronics systems.

Browse more marine electronics, trolling motors, anchoring equipment, and boat accessories from Precision Marine Outdoors.

How to Install and Use the Power-Pole CHARGE

Install the CHARGE in a suitable location and connect the system to the appropriate engine and auxiliary battery banks according to Power-Pole’s wiring diagrams. The unit also interfaces with the boat’s shore-power and engine charging systems. Because battery-bank configurations differ, the official wiring diagram for the exact 12V/24V/36V setup should be followed. (Power-Pole)

After installation, configure battery chemistry, capacity, and system preferences in the Power-Pole app. This step is especially important when using lithium batteries. (Power-Pole)

Marine electrical work should follow the manufacturer’s instructions and applicable marine electrical standards. For complete wiring information, use the official guide.

Power-Pole CHARGE Installation & Owner’s Guide

Frequently Asked Questions

What is the model number of the Power-Pole CHARGE?

The current 500W Power-Pole CHARGE Marine Power Manager is listed under model/SKU CH-500W. (Power-Pole)

Is Power-Pole CHARGE just an onboard battery charger?

No. Power-Pole describes CHARGE as a 4-in-1 system combining conventional charging, bi-directional power management, charge-on-the-run capability, and emergency starting support. (Power-Pole)

Does Power-Pole CHARGE work with lithium batteries?

Yes. Power-Pole lists compatibility with lithium as well as AGM, lead-acid, GEL, and TPPL batteries. Lithium installations must be configured correctly in the Power-Pole app. (Power-Pole)

Can it work with a 36V trolling motor battery?

Yes. Power-Pole documents support for 24V and 36V auxiliary/trolling-motor battery systems, including single 24V/36V lithium batteries and appropriate series-connected 12V configurations. (Power-Pole)

How much power does CHARGE provide?

The CHARGE provides up to 500 watts, with a maximum of 40 amps to the engine battery and up to 25 amps to auxiliary batteries. (Power-Pole)

Can it charge trolling-motor batteries while the boat is running?

Yes. Its run-charge functionality can use available power from the 12V engine battery/charging system to provide charging power to the 24V or 36V auxiliary battery bank. (Power-Pole)

Can CHARGE help start the engine if the cranking battery is low?

Its Emergency Power Transfer feature can transfer available energy from the auxiliary batteries to the engine battery for starting. However, Power-Pole notes an exception if a lithium cranking battery has shut down or entered sleep mode. (Power-Pole)

Can I monitor CHARGE from my phone?

Yes. Battery information and charging priorities can be accessed through the compatible Power-Pole/C-Monster app. (Power-Pole)

Is the Power-Pole CHARGE waterproof?

Power-Pole rates the enclosure IP65, meaning it is designed for marine environmental protection, but it should still be installed according to the manufacturer’s mounting instructions. (Power-Pole)

Authoritative Resources

For current specifications and manufacturer information, see the official Power-Pole CHARGE product page. For battery configurations, especially lithium installations, use Power-Pole’s CHARGE Lithium Battery Setup Guide. Installation documentation is available through the official Power-Pole manuals library.
