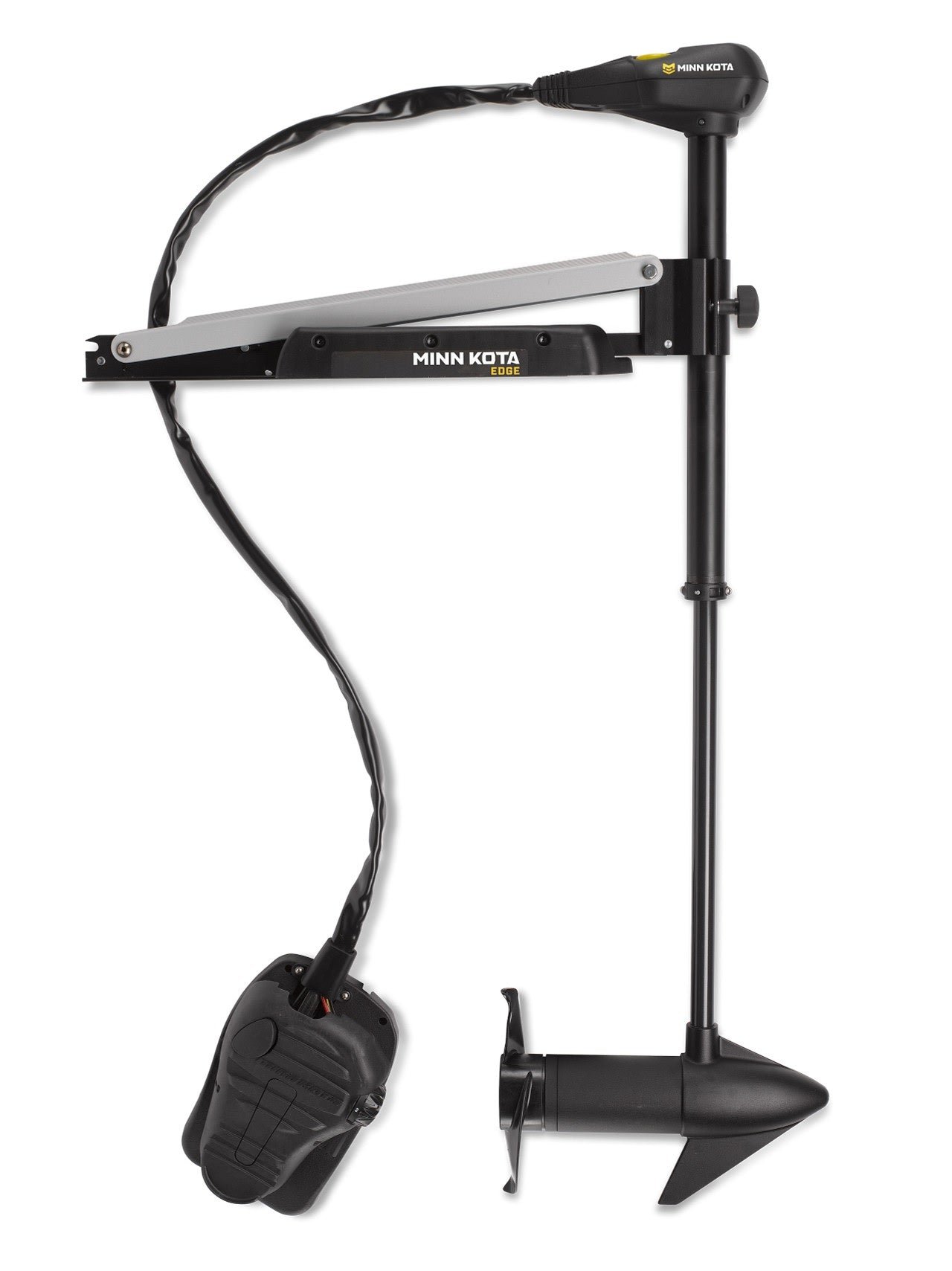

Minn Kota Edge 70 52″ Shaft Trolling Motor

The Minn Kota Edge 70 52″ Shaft is a powerful freshwater bow-mount trolling motor built for anglers who want dependable 70 lb thrust, 24V power, responsive cable steering, and a longer 52-inch shaft. Designed for serious freshwater fishing, the Edge 70 combines straightforward operation with Minn Kota’s proven trolling-motor technology.

The 52-inch shaft provides additional reach compared with shorter Edge configurations, making this model useful for compatible bass boats and fishing boats with a greater bow-to-waterline distance. For current manufacturer information, visit the official Minn Kota Edge product page.

Minn Kota Edge 70 52″ Specifications

Brand: Minn Kota
Series: Edge
Product Type: Freshwater bow-mount trolling motor
Maximum Thrust: 70 lb
Shaft Length: 52 inches
Voltage: 24V
Steering: Cable steer
Control: Heel-toe foot pedal
Speed Control: 5 forward speeds
Mounting Position: Bow
Mount: Latch & Door bracket
Shaft: Composite
Water Type: Freshwater
GPS / Spot-Lock: No
Built-In Sonar: No

The Minn Kota Edge 70 52″ Shaft provides considerably more power than 45 lb and 55 lb Edge models while retaining the direct feel of traditional cable steering.

For other options, explore trolling motors and marine accessories at Precision Marine Outdoors.

70 LB Thrust with 24V Power

With 70 pounds of maximum thrust, the Edge 70 provides strong low-speed propulsion for compatible freshwater fishing boats. It operates from a properly configured 24V trolling-motor battery system.

Five fixed forward speeds allow anglers to select an appropriate output for different situations—from slowly working a shoreline to repositioning the boat around structure.

Actual performance can vary depending on boat size, weight, hull design, battery condition, wind, current, and other operating conditions.

For additional educational information about electric trolling propulsion, see the Wikipedia guide to trolling motors.

Heel-Toe Cable-Steer Foot Pedal

The Minn Kota Edge 70 52″ Shaft uses a heel-toe foot pedal and direct cable steering. This setup gives anglers responsive directional control while leaving their hands available for casting and retrieving.

Traditional cable steering is particularly popular among anglers who prefer immediate mechanical steering response without electronic steering controls.

The Edge’s Latch & Door mount provides a rugged mounting platform while also making removal of the motor more convenient when necessary.

52-Inch Composite Shaft

The longer 52-inch shaft is an important feature of this Edge 70 configuration. Correct shaft length helps keep the motor and propeller at an effective operating depth as the boat moves through changing conditions.

The appropriate shaft length depends on the boat’s bow height, mounting position, load, and typical water conditions. Verify your measurements before purchasing.

You can explore fish finders, trolling motors and marine electronics at Precision Marine Outdoors for additional equipment when upgrading a freshwater fishing boat.

How to Use the Minn Kota Edge 70 52″

Securely mount the trolling motor at the bow according to Minn Kota’s installation instructions. Connect it to an appropriate 24V battery configuration using correctly sized marine wiring and the required circuit protection.

Deploy the motor before use and adjust the shaft to the correct operating depth. Use the heel-toe pedal to steer and select the required speed.

After fishing, switch off the motor and securely stow it before operating the boat at higher speeds.

For detailed installation and operating guidance, use Minn Kota’s official Edge manuals and support resources.

Frequently Asked Questions

How much thrust does the Minn Kota Edge 70 have?

The Edge 70 provides 70 pounds of maximum thrust.

What voltage does the Minn Kota Edge 70 require?

It operates on a properly configured 24V trolling-motor electrical system.

How long is the shaft?

This Edge 70 configuration has a 52-inch shaft.

What is the difference between the Edge 70 45″ and 52″?

The primary difference is shaft length. The 52-inch model provides 7 inches of additional shaft length, which can be useful for boats requiring greater reach below the bow.

Does the Edge 70 have a foot pedal?

Yes. It features a heel-toe cable-steer foot pedal.

Does the Minn Kota Edge 70 have Spot-Lock?

No. The Edge is a traditional cable-steer trolling motor without integrated Spot-Lock or GPS navigation.

Is this a freshwater trolling motor?

Yes. The Minn Kota Edge series is designed for freshwater fishing.

Does the Edge 70 have built-in sonar?

No. The standard Edge 70 does not have a built-in sonar transducer.
